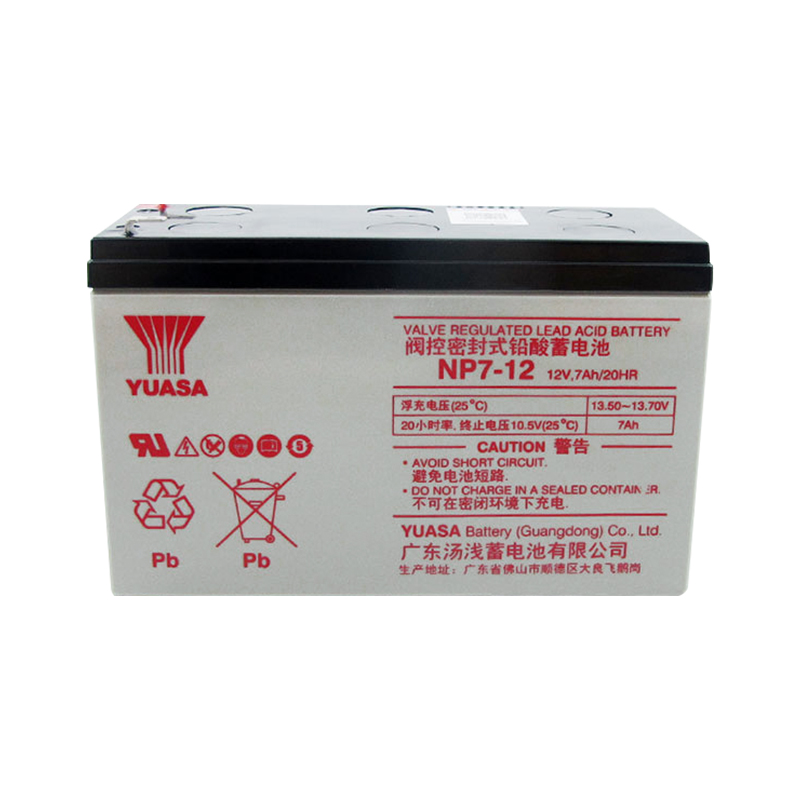

Yuasa NP7-12
Yuasa NP7-12
Ruiwu Price: Price on request
The seller of this product is verifiedBrandYuasa UPS Battery
SeriesNP Series
Compare Similar ProductsCapacity:7AH
Weight (kg):2.36
Dimensions (mm):151*65*94
Qty
Shipping
In about 1 week|Shipped by manufacturer|Deppon Logistics
湖塘, Wujin District, Changzhou, Jiangsu
Est. Shipping
Select a delivery region to check shipping cost
Service
Warranty 1 year/3 years, provided by the supplier warranty; using Debang, Jingdong's cross-logistics carrier, the original factory direct delivery and distribution.
Favorite
Contact Us24/7 Support
Scan to contact our customer service
For more details,
call us: 400-6611-323
call us: 400-6611-323
Overview
Specifications
Yuasa battery parameter table
| Capacity | 7AH |
| Model | Yuasa NP7-12 |
Yuasa Battery Standard
| Battery category | Maintenance-free sealed lead-acid battery |
| Rated voltage (V) | 12V |
| Capacity (Ah) 20 hour rate 20HR | 7.2Ah | Termination voltage | 10.02V |
| Floating charge voltage | 13.6-13.8V |
| Shell material | The use of high-quality flame-retardant ABS tank shell, in line with UL94V-0 standards, reduce the shell may burn |
| Terminal model | 187 250M |
Yuasa battery characteristics
| Capacity (25 ℃) | 20 hour rate | 7.5Ah |
| 10 hour rate | 7Ah | |
| 3 hour rate | 5.9Ah | |
| 1 hour rate | 4.2Ah | |
| Internal resistance (25 ℃) | Safe charging | 24m Ω | Discharge capacity at different temperatures (20 hour rate) | 40 ℃ | 102 percent |
| 25 ℃ | 100 percent | |
| 0 ℃ | 85% | |
| -15 ℃ | 65% |
Storage self-discharge residual capacity (25°C)
| Self-discharge residual capacity (25°C) | ||
| 3 months | 91% | |
| 6 months | 82% | |
| 12 months | 64% |
Yuasa battery physical indicators
| Long (D) | 151.00mm |
| Width (W) | 65.00mm |
| High (H) | 94.00mm |
| Total height (TH) |
97.50mm |
| Weight approx. | 2.50 KG |
Yuasa battery use environment
| Working environment | 0 ℃ ~ 40 ℃ (suitable temperature is 25 ℃) |
| Working relative humidity | 0 - 95% |
| Storage temperature | -35-45 ℃ |
| Ambient temperature | The battery capacity is based on the ambient temperature of 25°C. For every 1°C drop in temperature, the battery capacity will drop by about 1%. The influence of ambient temperature should be considered in use. |
Yuasa Battery Warranty
| Standard Warranty | Repair or replacement within 1 year |
Installation
No data
Documents
No data
