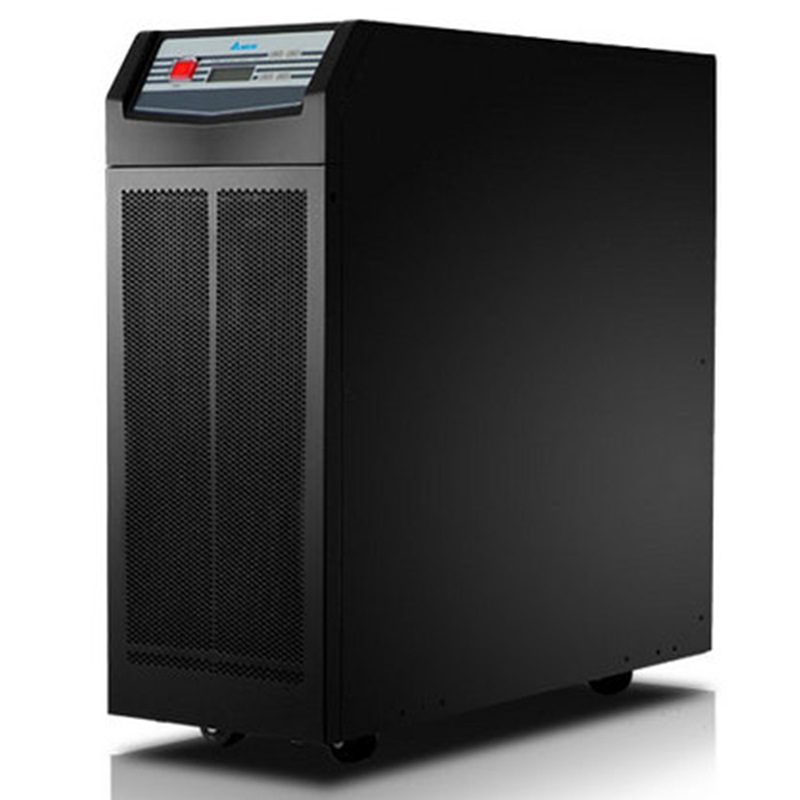

Delta GES-EH20K
Delta GES-EH20K
Ruiwu Price: Price on request
The seller of this product is verifiedBrandDelta
SeriesEH series (three in single out)
Compare Similar ProductsCapacity:20KVA
Input/Output:3-Phase In / 1-Phase Out (380V:220V)
Weight (kg):45
Dimensions (mm):250*610*650
Qty
Shipping
In about 1 week|Shipped by manufacturer|Deppon Logistics
湖塘, Wujin District, Changzhou, Jiangsu
Est. Shipping
Select a delivery region to check shipping cost
Service
Warranty 1 year/3 years, provided by the supplier warranty; using Debang, Jingdong's cross-logistics carrier, the original factory direct delivery and distribution.
Favorite
Contact Us24/7 Support
Scan to contact our customer service
For more details,
call us: 400-6611-323
call us: 400-6611-323
Overview
Specifications
Delta GES-EH20K specifications
| Rated capacity | 20KVA/16KW |
Delta GES-EH20K input
| Nominal voltage | 220/380Vac;230/400Vac;240/415 Vac |
| Voltage range | 208 to 304Vac(50 to 100 load);305 to 477Vac(100 load) |
| Frequency | 50/60Hz |
| Power factor | > 0.95 (full load) |
Delta GES-EH20K output
| Voltage | 220/230/240Vac |
| Voltage regulation rate | ±2% |
| Output voltage distortion | ±1% |
| Overload capacity | ≤105%: continuous; 106%–110%: 10 minutes; 111%–125%: 1 minute; 126%–150%: 30 seconds |
| Frequency | 50/60Hz±0.1Hz |
Delta GES-EH20K Battery and Running Time
| Rated battery voltage | 240Vdc |
| Charging current | Built-in charger; 4A; Additional charging pad (optional):4A |
| Charging voltage | Float 272 /-2 Vdc all 280Vdc |
Delta GES-EH20K communication interface
| Interface | 1 SMART slot, 1 MINI slot, 2 parallel-connection ports, 1 RS232 port, 1 REPO port, 1 charger-monitoring port |
Delta GES-EH20K Compliance
| Safety regulations and electromagnetic compatibility | CE,IEC62040-1;IEC602040-2 |
Other functions of Delta GES-EH20K
| Power Emergency Shutdown | Proximal and Remote |
| Maintenance Bypass Switch | Built-in |
Delta GES-EH20K Efficiency
| Online mode | 91% |
| Economic model | 96% |
Delta GES-EH20K Environment
| Operating environment | 0 - 40 °C |
| Operating relative humidity | 5- 95% (without condensation) |
| Audible noise 1 m from equipment surface | ＜60dBA |
Delta GES-EH20K physical indicators
| Dimensions W*D*H | 250*610*650 mm |
| Weight | 45KG |
